B-R-R Series (Planer Sander)

The new wide belt sanding machine for wood designed to satisfy the needs of medium to large-sized factories that require versatility and high technology content.
Inquiry

Specification

ModelB-R-R630B-R-R1000B-R-R1300
Max working width630mm1000mm1300mm
The shortest processing length300mm300mm400mm
Max processing thickness200mm200mm160mm
Conveyor  speed6-30m/min6-30m/min6-30m/min
Total power31.37kw39.75kw78.55kw
First frame motor power 11kw11kw22kw
Second sand frame motor power 11kw15kw30kw
Third sand frame motor power 7kw11kw22kw
Conveyor motor wattage1.5kw2.2kw4kw
Lifting motor power 0.37kw0.37kw0.55kw

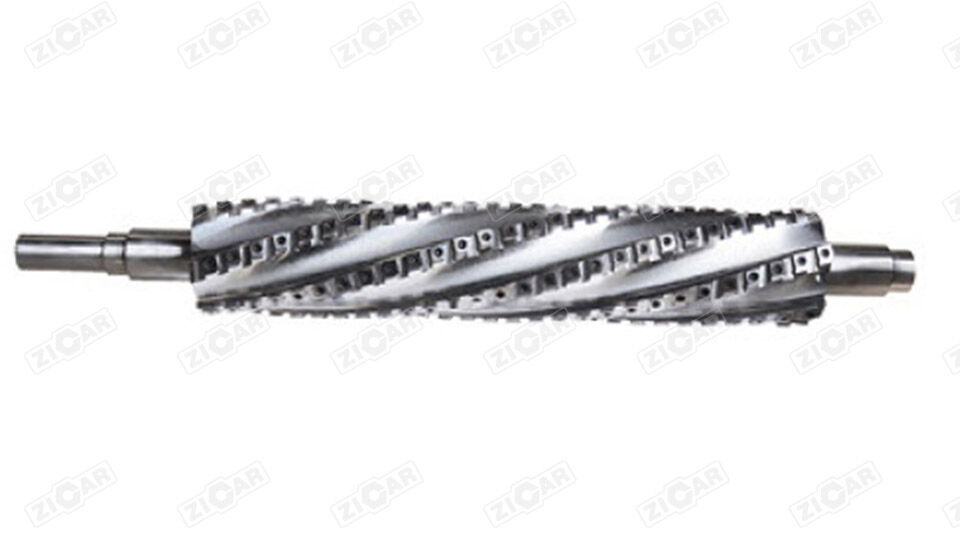

First sand shelf planing roller diameter127mm127mm180mm
Second sand  roller diameter190mm190mm240mm
Third sand roller diameter190mm190mm240mm
Abrasive belt size650*1920MM1020*1920MM1330*2200MM
Working pressure0.6Mpa0.6Mpa0.6Mpa
Dust collection8000m³/h8000m³/h12500m³/h
Outline dimension2350x1300x2200mm2350x1700x2200mm2800x2700x2200mm
Weight2500kg3000kg4700kg


Features

Stability1. The machine body is welded by steel plates, and has been quenched to make the stability stronger. Imported conveyor belts are used for good reliability and durability.
2. The whole series adopts beam barrel and beam seat split structure, which has good stability and convenient maintenance.
3. Belt cylinder is made of cast iron, with strong tension and good stability.
4. Conveyor belt adjustment cylinder adopts 63*20 cylinder, which has great strength and good stability
5. The head of the active roller is thickened and quenched to ensure stability and robustness
6. The thickness indicator adopts light sensor head, which has high accuracy and good stability in various complicated environments.
7. Using original imported frequency converter, sensitive and reliable action, high stability
Convenience1. Adopt advanced interpersonal interface and digital display, and have worktable lifting preset function to make the operation more convenient
2. The feeding power of the equipment adopts a frequency conversion installation device, which has high precision and fast and efficient work.
3. The conveying speed is digitally displayed and can be adjusted at will according to different requirements
4. Adopt the imported combined sand frame, the process of first planing and second sanding and then polishing, high efficiency and energy saving
Safety1. Multiple safety device design, safe and reliable. Effectively ensure the safety of personnel and machinery while working, saving work manpower,
2. The casting stop device is used to prevent the plate from rebounding and hurting people during the processing process

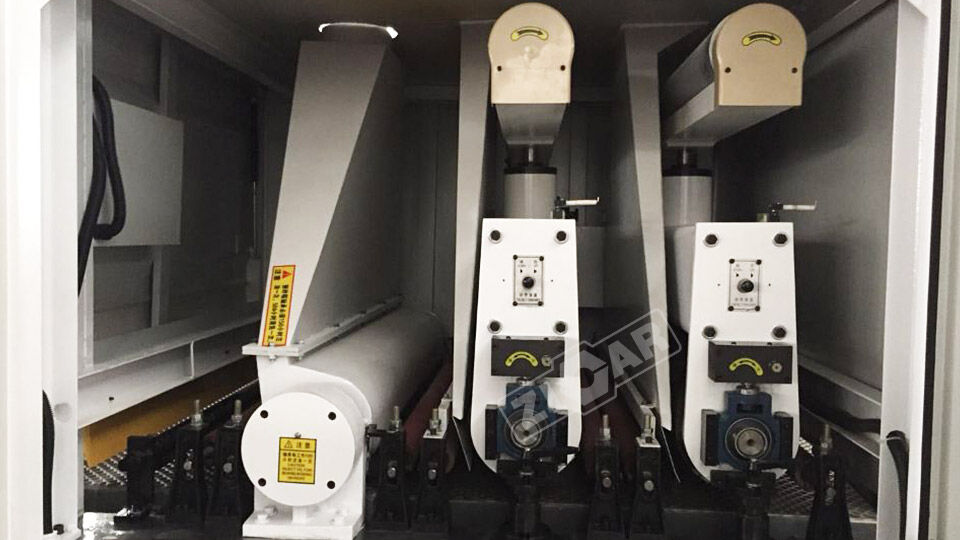

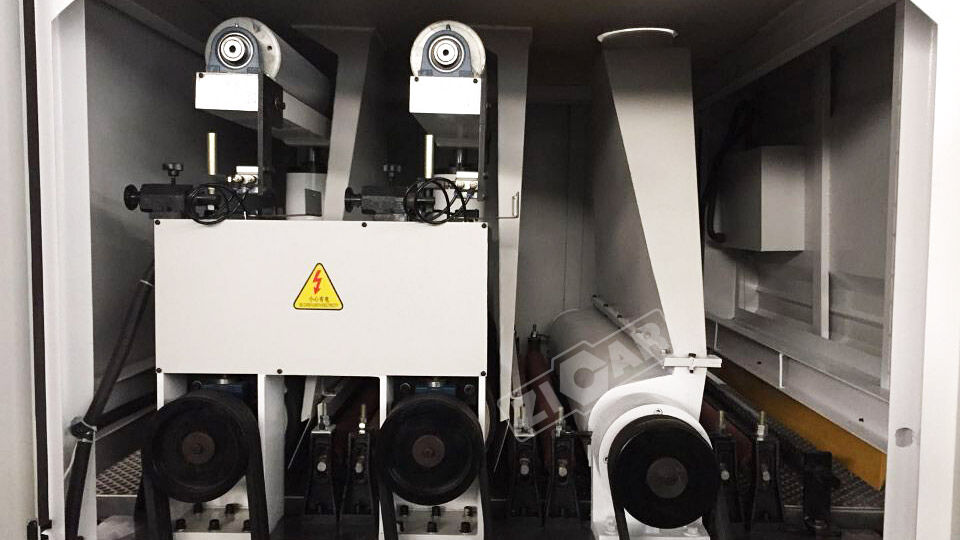

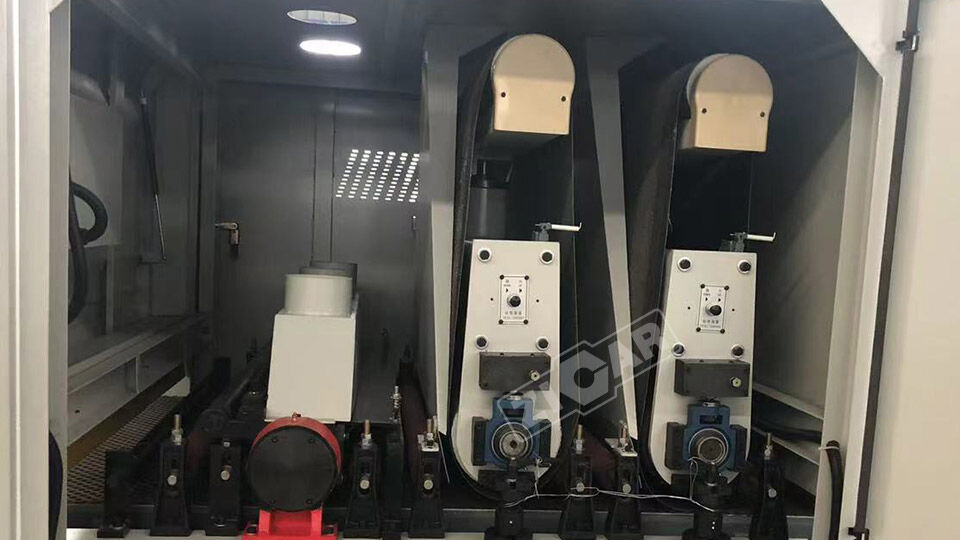

Detail




Related recommendations

Excellent service and competitive price

FAQ

Frequently Asked Question

Do you have machine in stock?How long about your delivery time?

  • It depend on your interested machine model, quantity and your local voltage, please kindly inform us.
  • We will check the delivery time with our own factory engineer for you.

What's the shipping cost?

  • It depend on your destination port and interested model,please kindly inform us.
  • We will check with our freight forwarder for you.

Do you have technical,operation and maintenance manual? Yes. Of course.

  • Each of our models have these manual.
  • Electric version will be provided online for reference.
  • Paper version will be packed with machine before shipment.

How long is your warranty?

  • Guarantee time is one year, except easy-wearing parts.
  • Provide the free spare part during the period apart from man-fault.
  • 24 hours online service.

How to install the machine?

  • Installation very easy.
  • Detailed installation manual and video will be provided
  • 24hours online service to provide the technical support of installation.
