Upper 5 Axis Four Side Planer

ZICAR upper 5 Axis Four Side Planer designed to satisfy the needs of small to medium production. It is easy to use with advanced technical solutions making it the reference point in its sector.
Inquiry

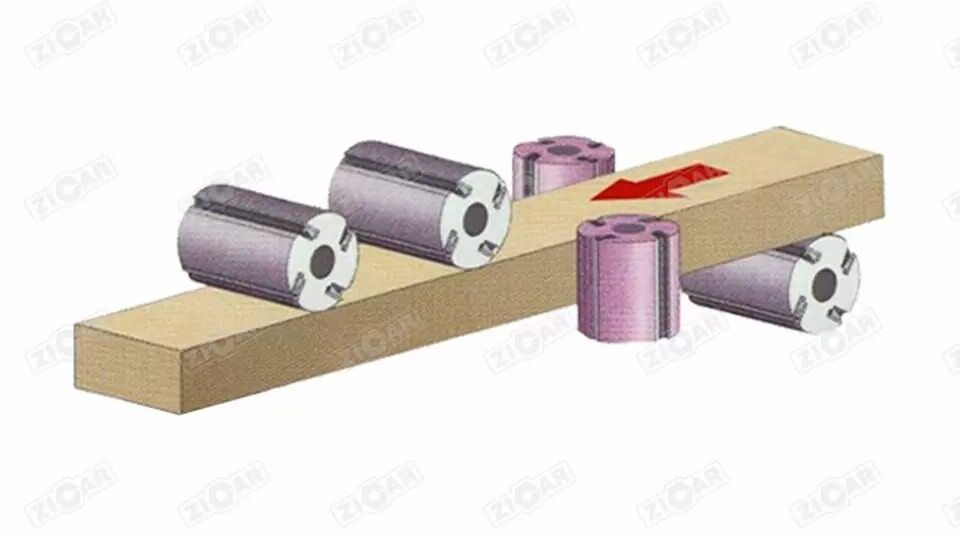

M5S series is the result of a project developed with the latest technologies. ZICAR upper 5 axis four side planer adopted revolutionary technical solutions that increase yield and overall machining quality.

Specification

Item/ModelM516ASM518ASM521AS
Working width25-160mm25-180mm25-210mm
Working thickness8-120mm8-120mm8-120mm
Feeding speed10-50m/min10-50m/min10-50m/min
Main shaft diameter1550mm1800mm1800mm
Spindle diameterφ40mmφ40mmφ40mm
Axial movement0-20mm0-20mm0-20mm
Main shaft revolution8000r/min8000r/min8000r/min
Pneumatic source pressure0.6Mpa0.6Mpa0.6Mpa
1st bottom spindle4kw4kw5.5kw
Right side spindle4kw4kw5.5kw
Left side spindle4kw4kw5.5kw
First top spindle5.5kw5.5kw7.5kw
2nd upper spindle5.5kw5.5kw7.5kw
Feed4kw4kw4kw
Feeding beam rise&fall0.75kw0.75kw0.75kw
General power 27.25kw27.25kw28.75kw
Trimming 145-160mm145-160mm145-160mm
First bottom spindle 125-180mm125-180mm125-180mm
Right side spindle125-180mm125-180mm125-180mm
Left side spindle125-180mm125-180mm125-180mm
1st top spindle125-180mm125-180mm125-180mm
2nd upper spindle125mm125mm125mm
Dust outlet diameter140mm140mm140mm
Feeding wheel diameter140mm140mm140mm
Dimension4100x1630x1750mm4100x1630x1750mm4100x1630x1750mm
Net weight2600kg2700kg3000kg

Features

  • IN-HOUSE MANUFACTURING OF THE MACHINE BODY

The machine is made of high-quality cast iron, and the surface is plated with hard chrome to ensure stable performance and durability.


  • QUALITY AT VERY COMPETITIVE PRICES

The production, using a dedicated internal structure allows a total control on the machine, in addition to its placing on the market at highly competitive prices.


  • KEEP WORKERS SAFE

Completely sealed safe cover can avoid saw dust and isolate noise efficiently, also can protect workers.


  • WORKING WIDTH 210mm WITH CARDAN JOINTS FOR FEED SYSTEM

The machine can process a single piece of 210mm width and the feed system is complete of cardan joints.


  • DEDICATED MOTOR FOR EACH WORKING GROUP

Each axis is driven by an independent motor to ensure perfect cutting results.


  • PERFECT AND EFFICIENT PROCESSING EFFECT

Magnetic grid sensor for thickness display, the accuracy is much higher than proximity sensor.

The feeding system adopts pressure pin encryption structure, and narrow materials can be passed, and the scope of use is wider.

Spiral cutterhead is for optional, it can provide fine planed surface without noise.


  • TESTS BEFORE DELIVERY

Machine carefully and repeatedly tested, before delivery to the customer (even with its cutters, if made available).


Detail

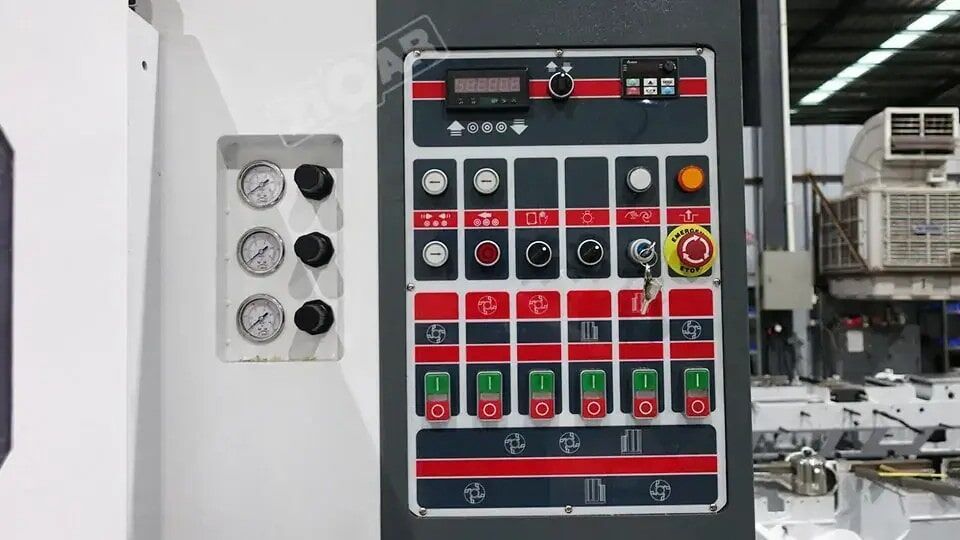

machine details (6).jpg


machine details (7).jpg


machine details (3).jpg

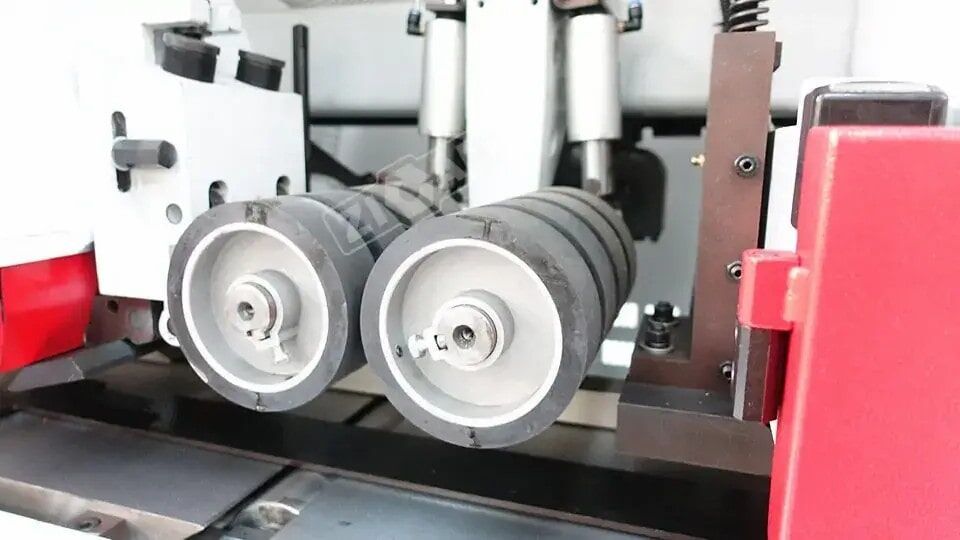

machine details (4).jpg

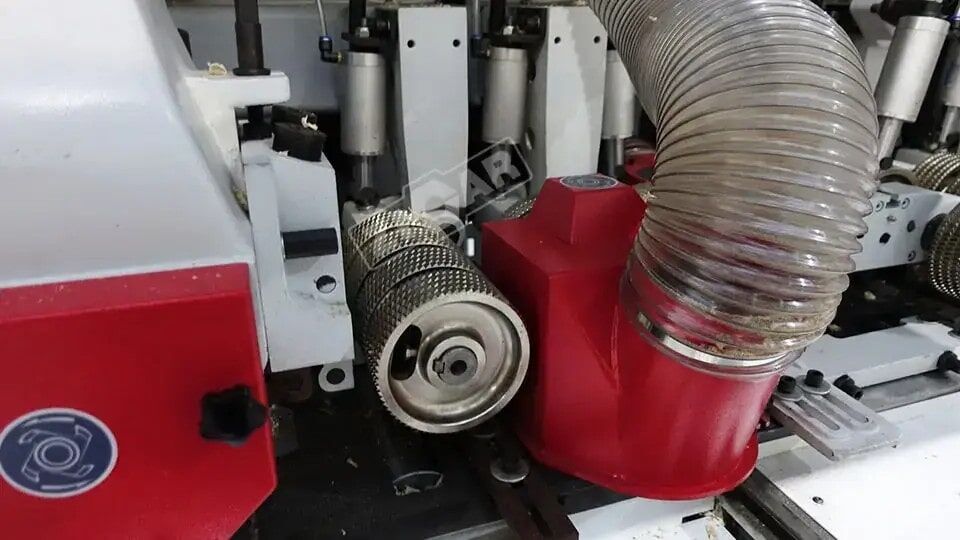

machine details (1).jpg


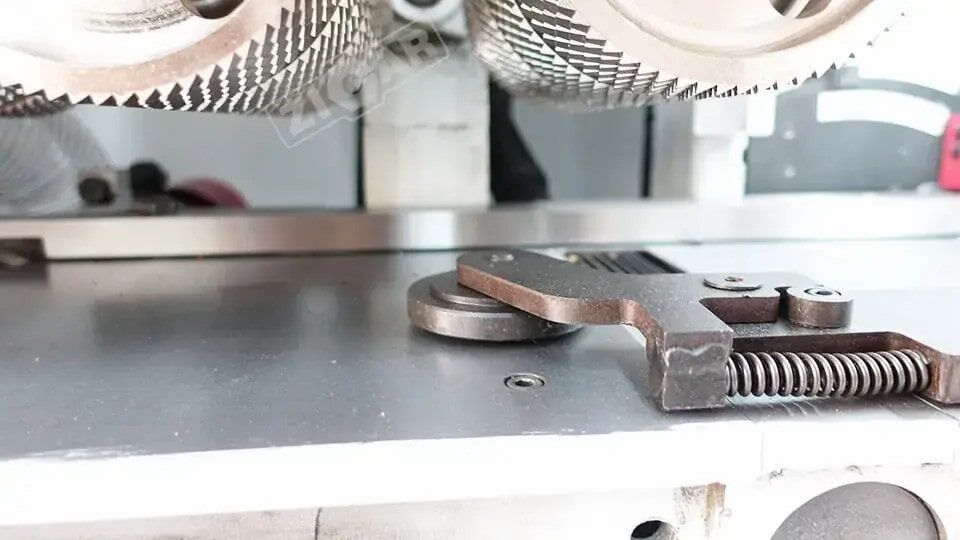

machine details (5).jpg
