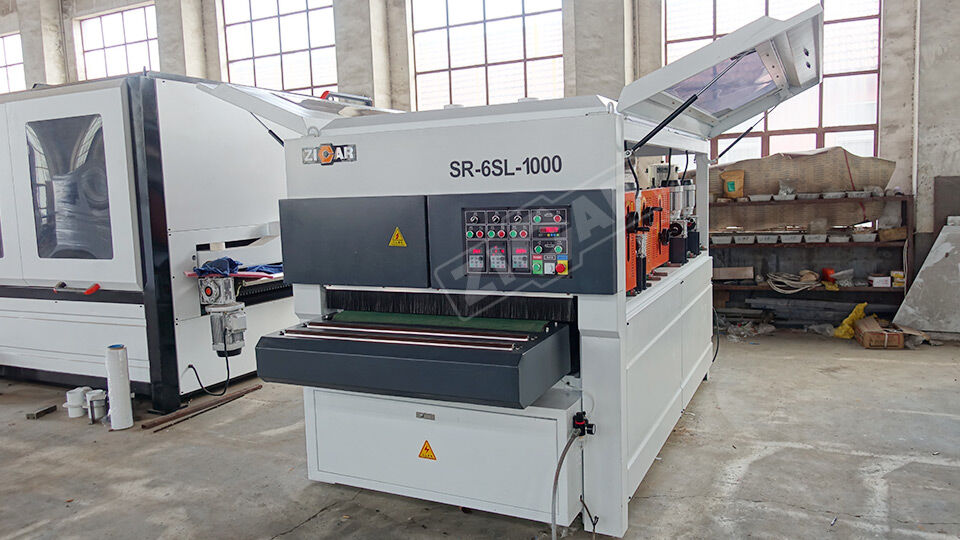

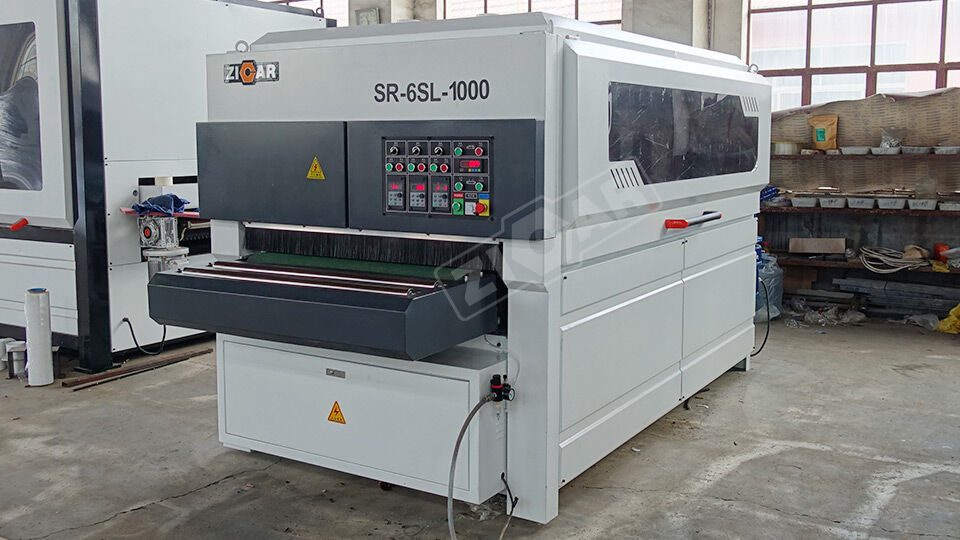

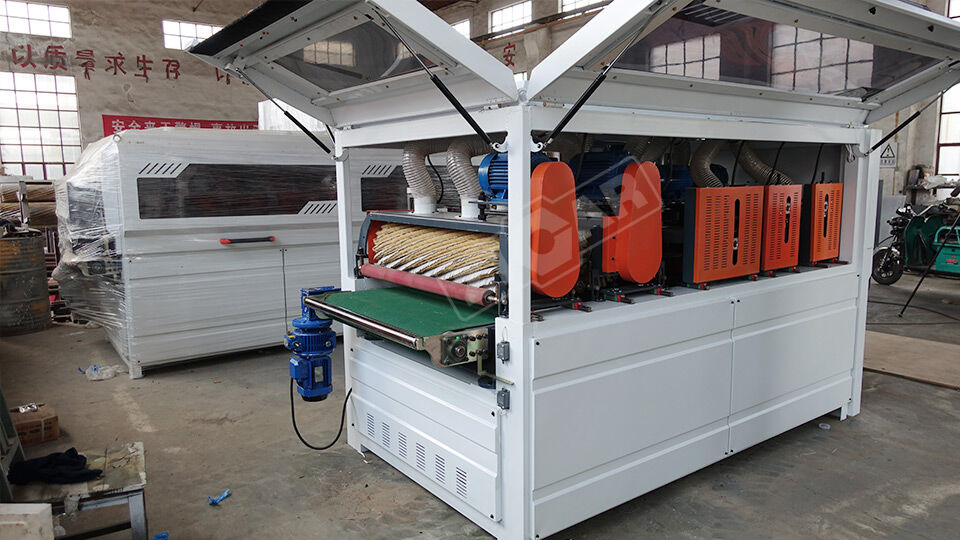

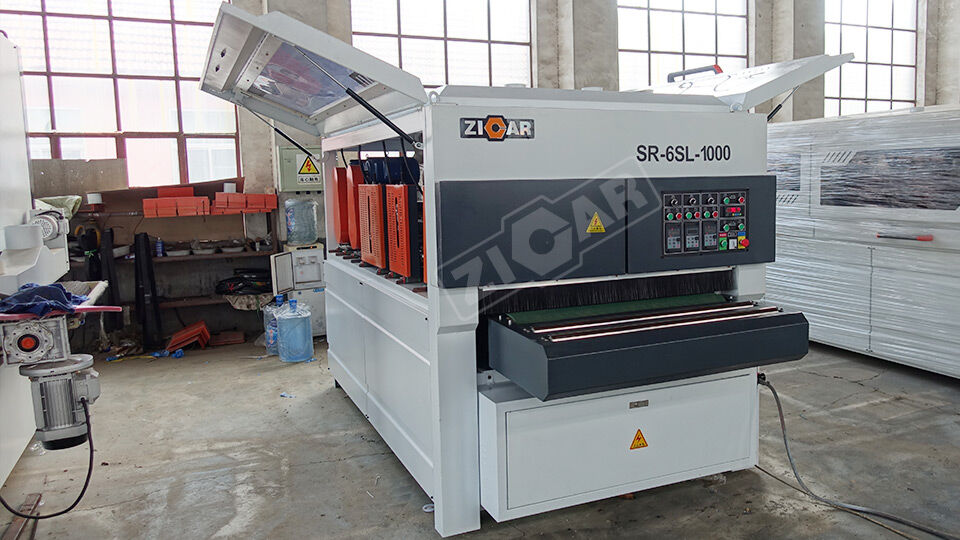

SR-6SL-1000

It is suitable for sanding furniture panels, decorative panels, front and rear panels of paint, or large man-made panels.
Belt-type woodworking sander has the advantages of high efficiency, guaranteed processing accuracy, easy replacement of sanding belts, etc.
Inquiry

Specification

ModelSR-6SL-1000SR-6SL-1300
Max. working width1000mm1300mm
 Min. working length 400mm 400mm
 Max. working thickness 100mm 100mm
 Horizontal roller motor power 2x1.5KW 2x1.5KW
 Disc brush motor power 1.5KW 1.5KW
 Screw roller motor power 2x1.5KW 2x1.5KW
 Lifting power of horizontal roller 0.55KW  0.55KW
 Lifting power of disc brush 0.37kw 0.37kw
 Lifting power of screw roller 0.55KW 0.55KW
 Lifting power of transport bed 0.37KW 0.37KW
 Reducer motor power 1.1KW 1.5KW
 Total power 10.44KW 10.79KW
 Screw roller number 2pcs 2pcs
 Screw roller diameter 300mm 300mm
 Brush plate number 9pcs 11pcs
 Brush plate diameter 180mm 180mm
 Horizontal plate number 7pcs 9pcs
 Horizontal plate diameter 260mm 260mm
 Conveyor speed 6-30m/min 6-30m/min
 Conveyor belt size 5970x1000mm 5970x1000mm
 Sunction dust hood 6x100mm 6x100mm
 Overall dimension 3400x1750x1900mm 3400x2050x1900mm


Features

Stability1. The machine body is welded by steel plates, and has been quenched to make the stability stronger. Imported conveyor belts are used for good reliability and durability.
2. The whole series adopts beam barrel and beam seat split structure, which has good stability and convenient maintenance.
3. Belt cylinder is made of cast iron, with strong tension and good stability.
4. Conveyor belt adjustment cylinder adopts 63*20 cylinder, which has great strength and good stability
5. The head of the active roller is thickened and quenched to ensure stability and robustness
6. The thickness indicator adopts light sensor head, which has high accuracy and good stability in various complicated environments.
7. Using original imported frequency converter, sensitive and reliable action, high stability
Convenience1. Adopt advanced interpersonal interface and digital display, and have worktable lifting preset function to make the operation more convenient
2. The feeding power of the equipment adopts a frequency conversion installation device, which has high precision and fast and efficient work.
3. The conveying speed is digitally displayed and can be adjusted at will according to different requirements
4. Adopt the imported combined sand frame, the process of first planing and second sanding and then polishing, high efficiency and energy saving
Safety1. Multiple safety device design, safe and reliable. Effectively ensure the safety of personnel and machinery while working, saving work manpower,
2. The casting stop device is used to prevent the plate from rebounding and hurting people during the processing process

Detail

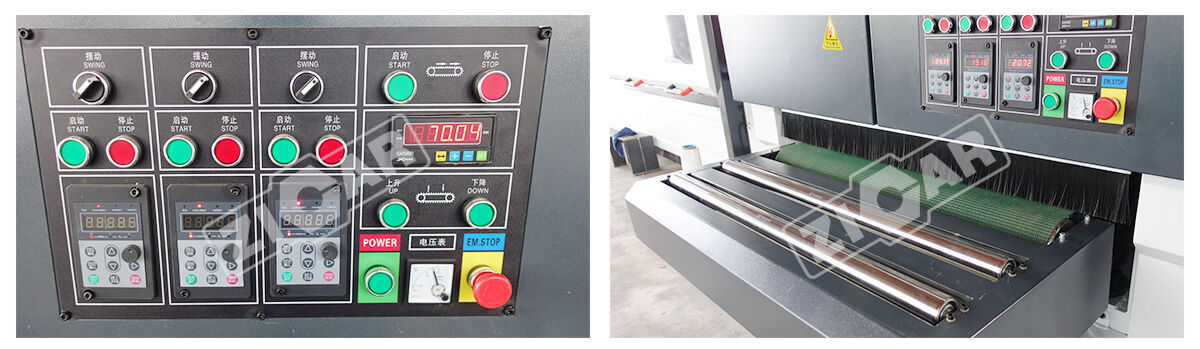

SR-6SL-1000 (8).jpg

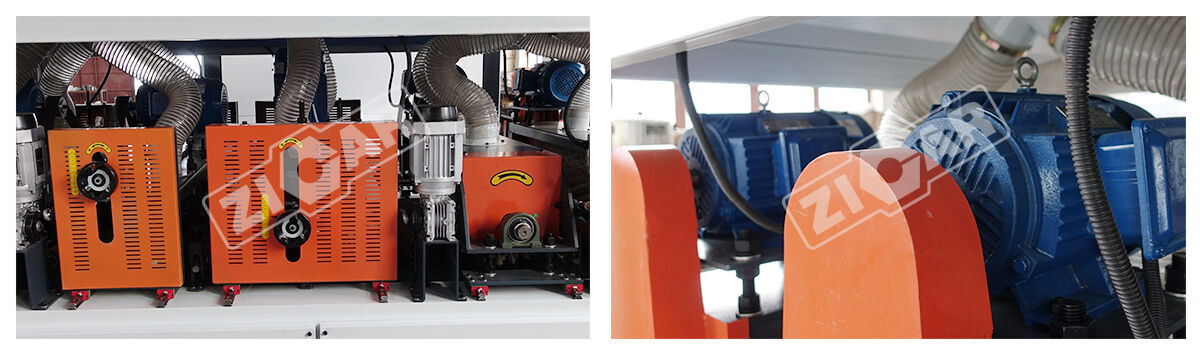

SR-6SL-1000 (10).jpg

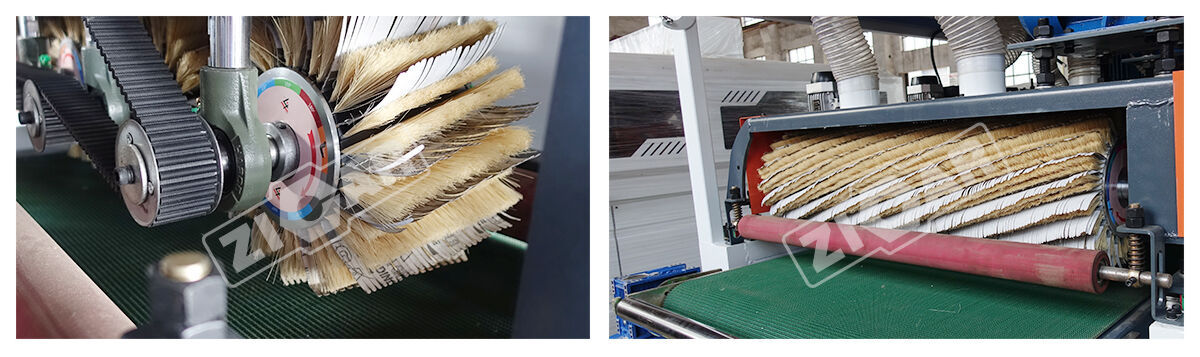

SR-6SL-1000 (1).jpg

SR-6SL-1000 (9).jpg
