SR-7SL-1300

It is suitable for sanding furniture panels, decorative panels, front and rear panels of paint, or large man-made panels.
Belt-type woodworking sander has the advantages of high efficiency, guaranteed processing accuracy, easy replacement of sanding belts, etc.
Inquiry


Specification

ModelSR-7SL-1300
 Max. working width 1300mm
 Max. working thickness 80mm
 Adjustable brush speed 80-450rpm
 Conveyor speed 5-20m/min
 Lifting power of each group 6x0.37KW
 Integral lifting power 1.1KW
 Disc brush motor power 2x1.5KW
 Screw roller motor power 3x2.2kw
 Horizontal roller motor power 2x1.1KW
 Conveyor motor power 2.2KW
 Swing motor power 6x0.25KW
 Total power 18.82KW
 Screw roller number of each group 1pcs
 Screw roller diameter 400mm

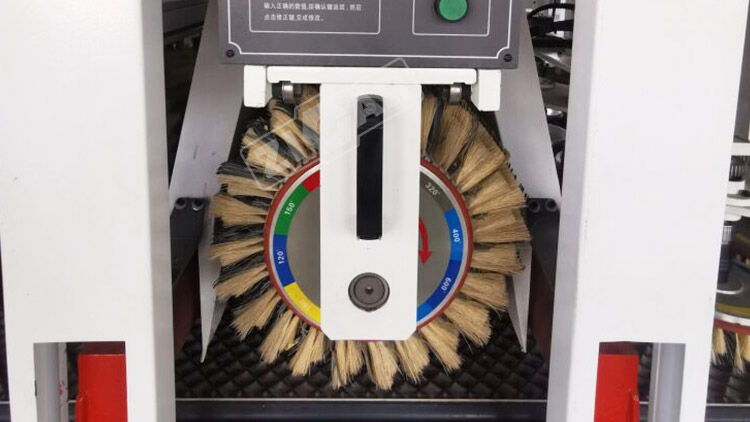

 Brush plate number of each group 9pcs
 Brush plate diameter 170mm
 Horizontal plate number 8pcs
 Horizontal plate diameter 300mm

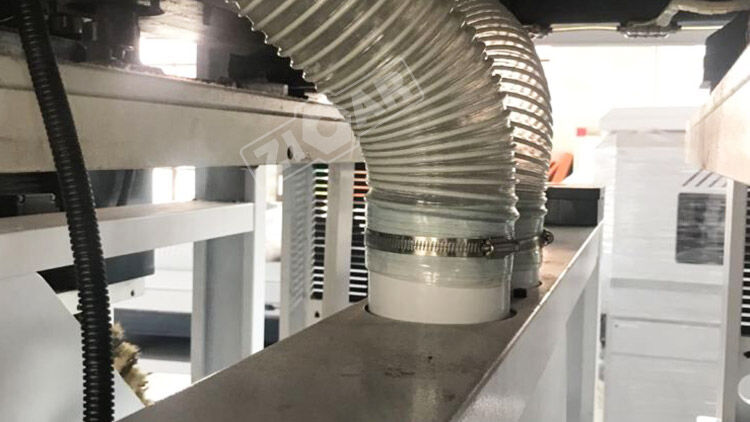

 Sunction dust hood 12x100mm
 Air speed 22-30m/s
 Weight 6000KG
 Overall dimension 5500x2200x2400mm


Features

Stability1. The machine body is welded by steel plates, and has been quenched to make the stability stronger. Imported conveyor belts are used for good reliability and durability.
2. The whole series adopts beam barrel and beam seat split structure, which has good stability and convenient maintenance.
3. Belt cylinder is made of cast iron, with strong tension and good stability.
4. Conveyor belt adjustment cylinder adopts 63*20 cylinder, which has great strength and good stability
5. The head of the active roller is thickened and quenched to ensure stability and robustness
6. The thickness indicator adopts light sensor head, which has high accuracy and good stability in various complicated environments.

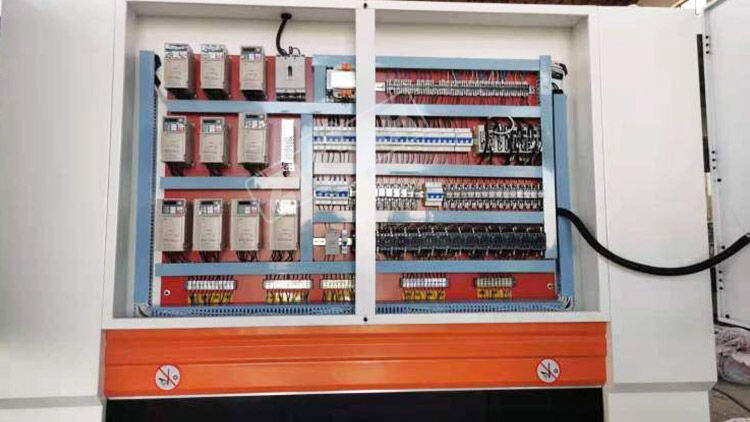

7. Using original imported frequency converter, sensitive and reliable action, high stability

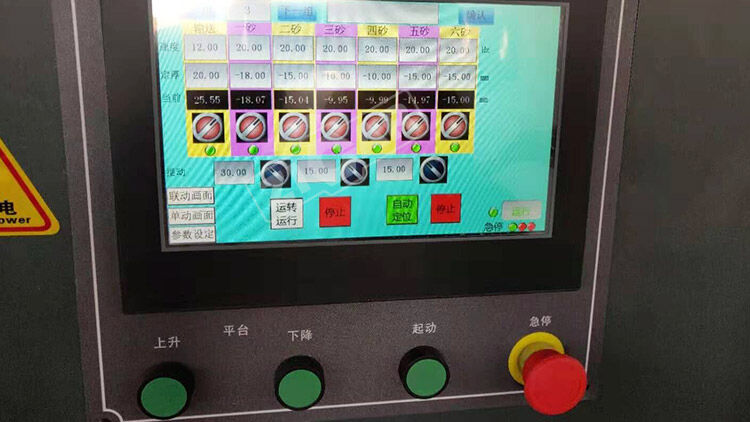

Convenience1. Adopt advanced interpersonal interface and digital display, and have worktable lifting preset function to make the operation more convenient
2. The feeding power of the equipment adopts a frequency conversion installation device, which has high precision and fast and efficient work.
3. The conveying speed is digitally displayed and can be adjusted at will according to different requirements
4. Adopt the imported combined sand frame, the process of first planing and second sanding and then polishing, high efficiency and energy saving
Safety1. Multiple safety device design, safe and reliable. Effectively ensure the safety of personnel and machinery while working, saving work manpower,
2. The casting stop device is used to prevent the plate from rebounding and hurting people during the processing process

Detail

1588915640511-1c3e9692-d0ff-4453-bf1c-d217102f989c

1588915606340-35b2b4b4-024a-4505-addc-fe659ae3e90d

1588915802066-fa0c6323-b039-49e5-bb67-76ffc458682f

1588915717659-de7a19af-5965-4383-99b1-1d925d2e1575
