This machine is mainly suitable for longitudinal sawing of large-width wood, and consists of three parts: the bed worktable, the rolling box and the main shaft.

The bed is welded with high-quality steel plates and treated with aging, with a strong thickness and no deformation. The rolling box and the main shaft sleeve are made of high-grade cast iron and have been treated with aging to ensure high reliability and precision retention of the machine tool.

The main shaft is processed with special materials and special processes, and has the characteristics of high precision and strong durability.

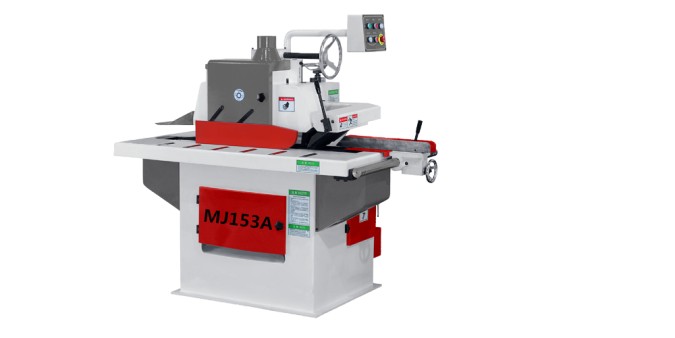

Straight line rip saw

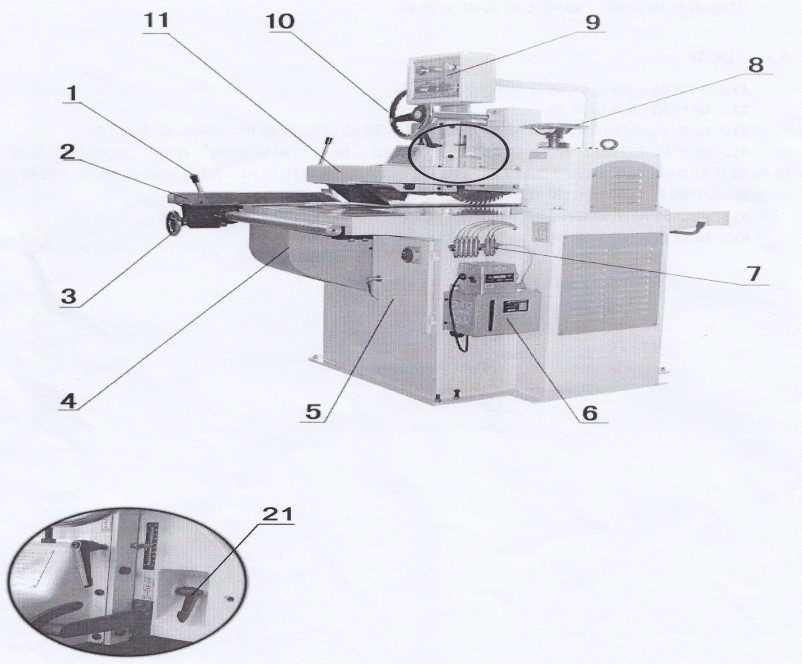

1. Eccentric locking handle

2. Guide plate

3.Guide plate moving handwheel

4.Tensioner guard

5. Electrical system

6. Lubrication system

7. Oil dispenser

8. Saw shaft lift handwheel

9. Control panel

10. Rolling and lifting handwheel

11. External anti-reverse claw device

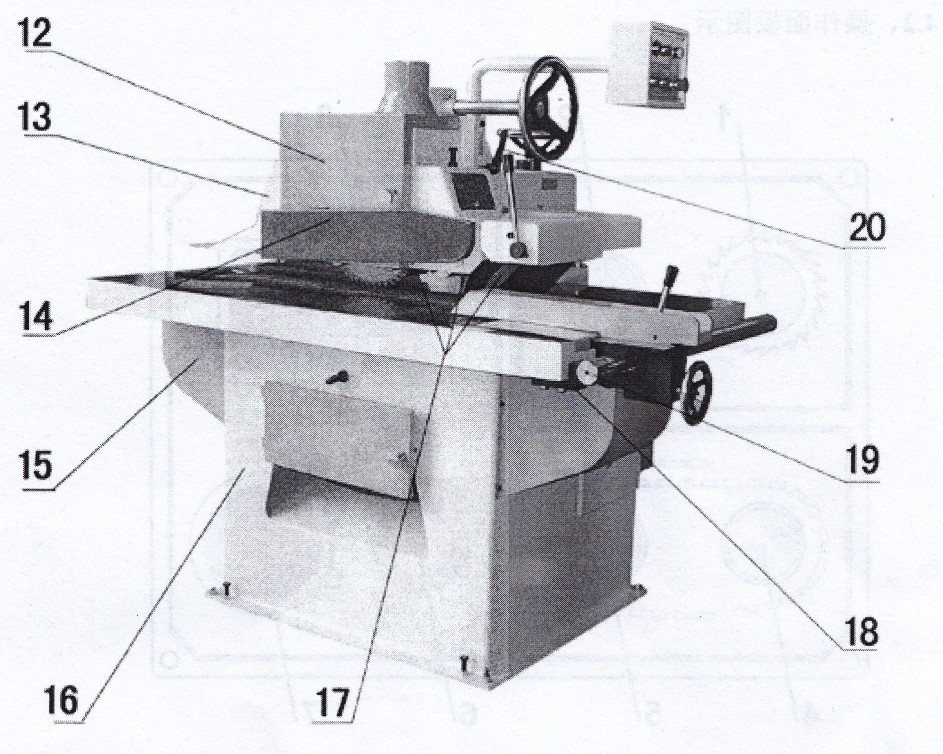

12．Front hood cover

13．Roller seat

14．Active shield

15. Drive wheel guard

16. Body components

17．Rebound device

18. Guide strut

19．Guide rod

20. Roller Box Indexable Tightening Handle

21. Saw shaft lift locking handle
